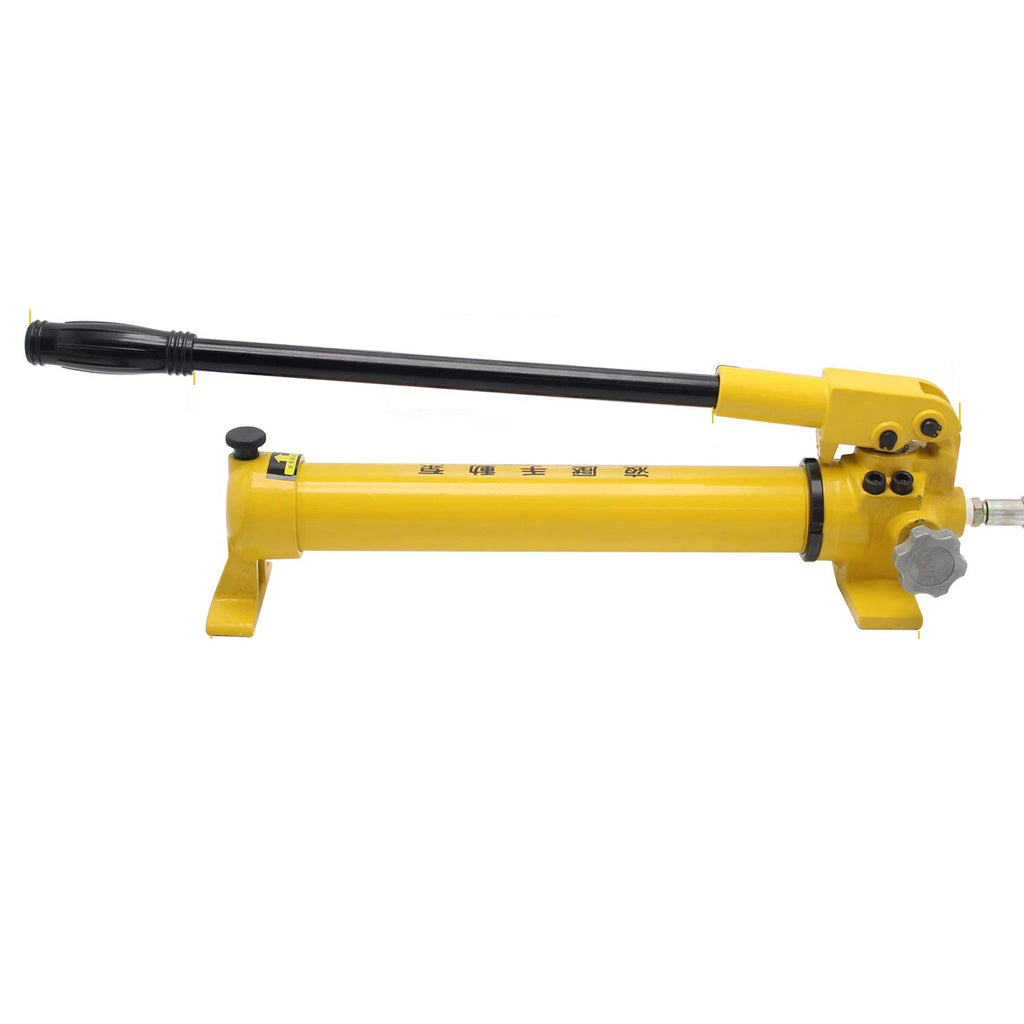

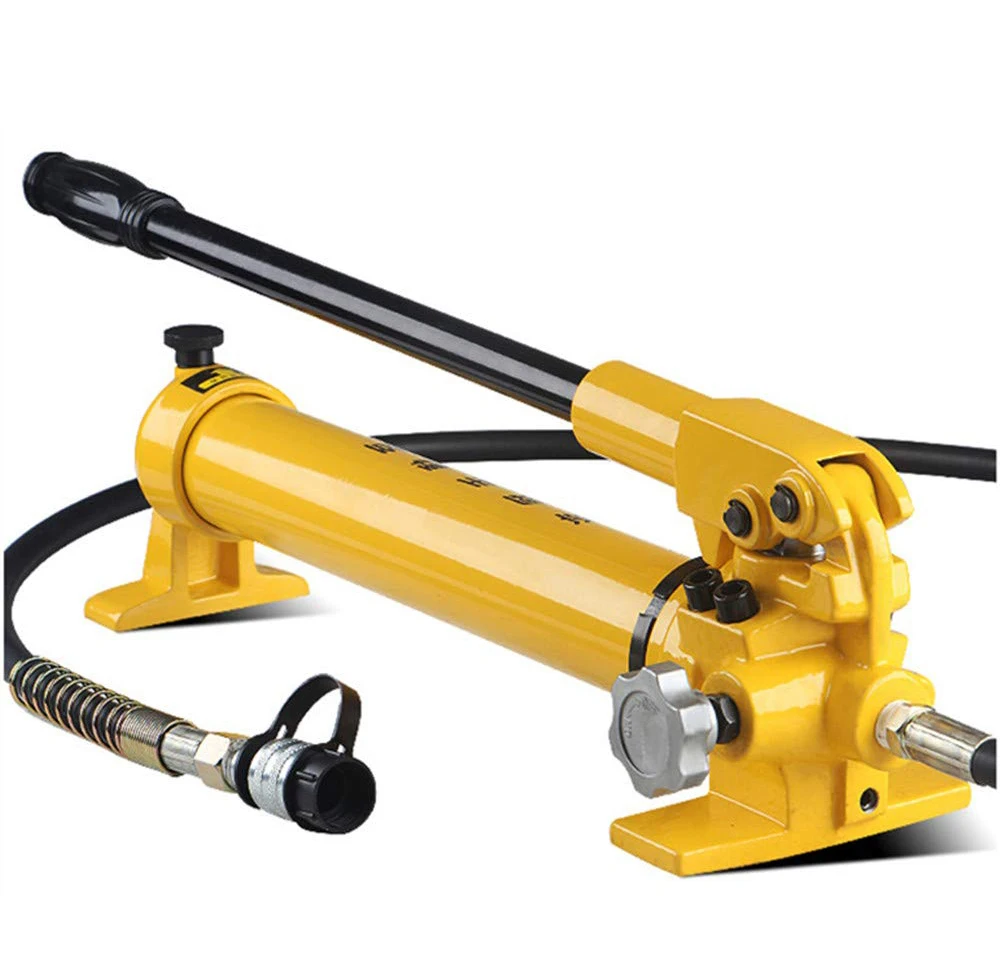

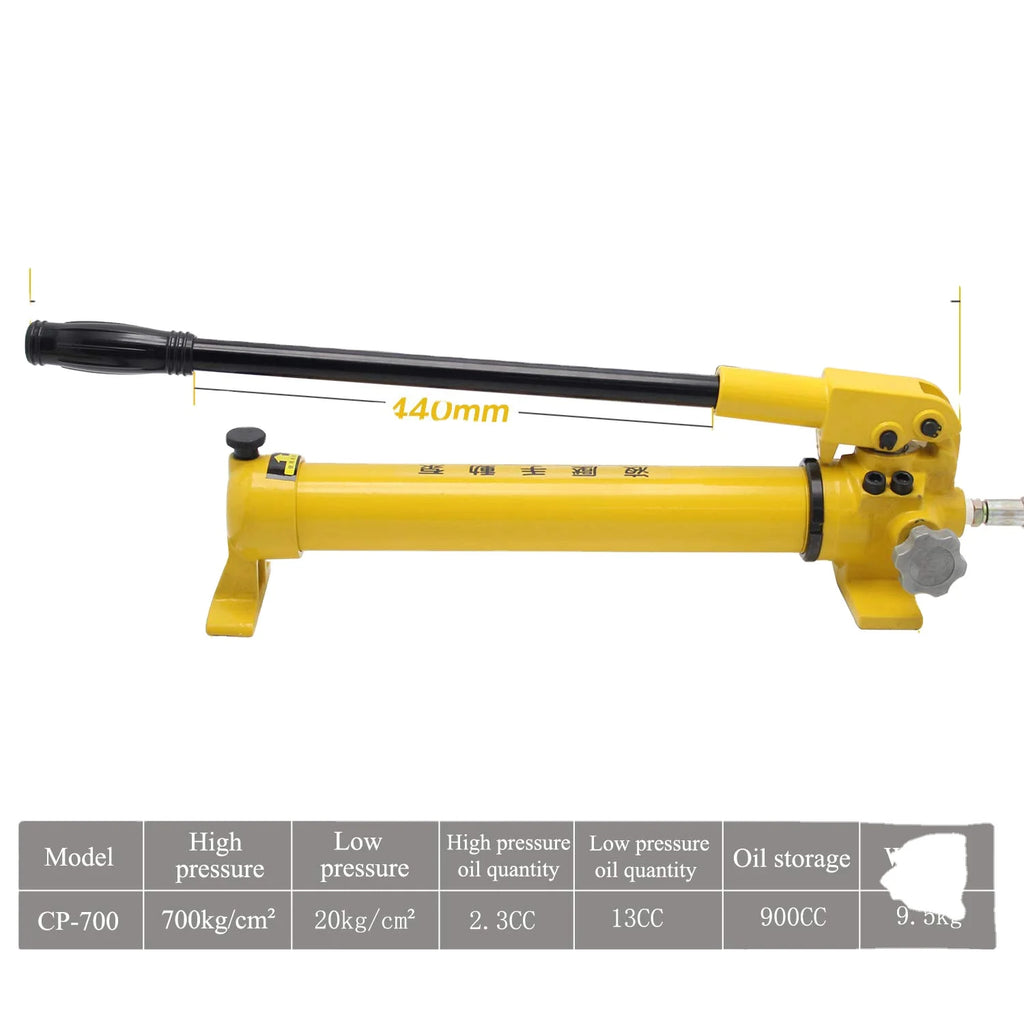

CP-700 Hydraulic Manual Pump, 10000PSI Lightweight Hydraulic Hand Pump for 10 Ton Hydraulic Ram Cylinders

CP-700 Hydraulic Manual Pump, 10000PSI Lightweight Hydraulic Hand Pump for 10 Ton Hydraulic Ram Cylinders

$0.61
Product Overview

CP-700

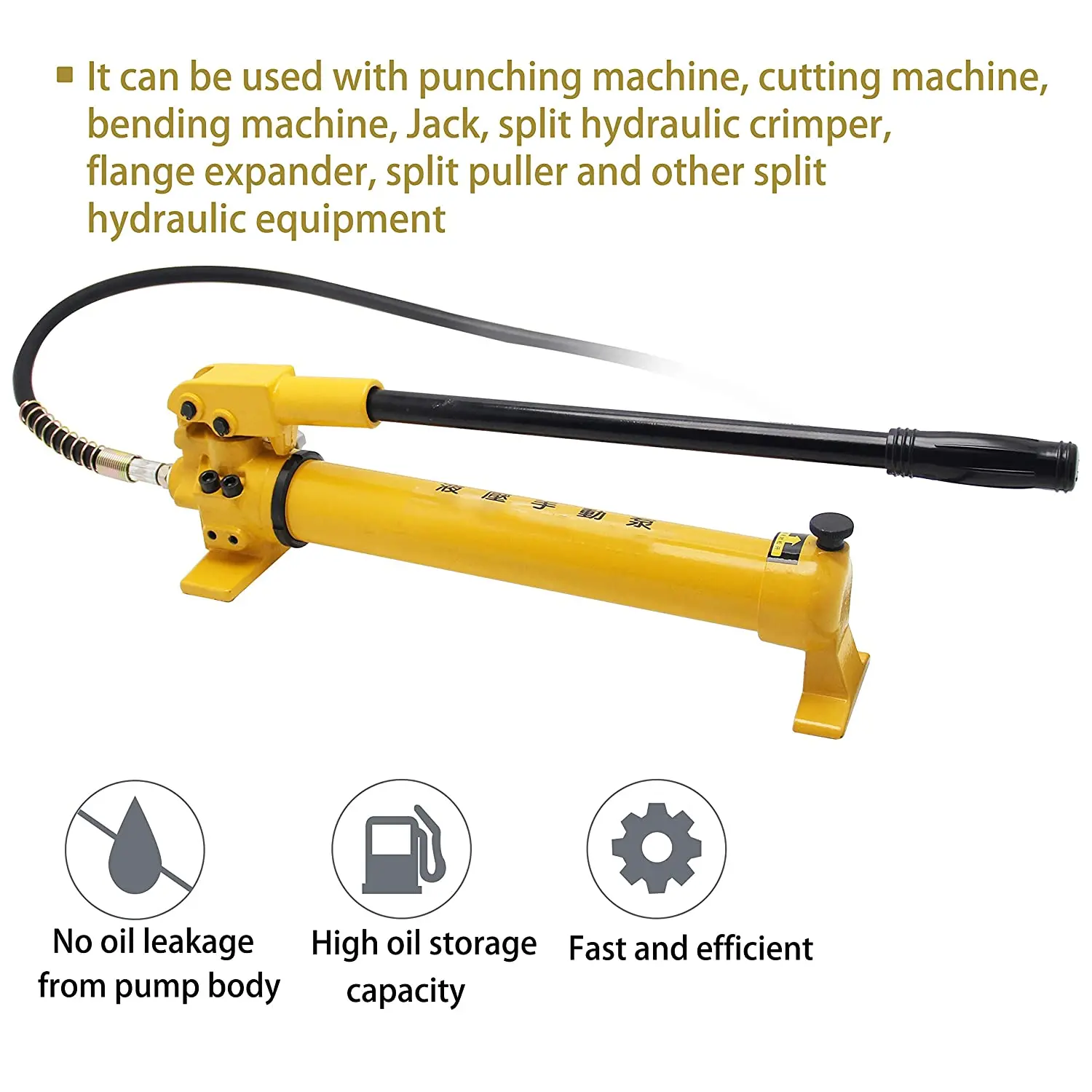

Manual hydraulic pump can be used with split hydraulic products, such as punching machine, cutting machine, bending machine, jack, split hydraulic clamp flange expander, split ram and other separate hydraulic equipment.
FEATURES AT A GLANCE
THE RIGHT TOOL FOR YOUR NEEDS
* 1. This pump is durable, smooth surface, good sealing performance.

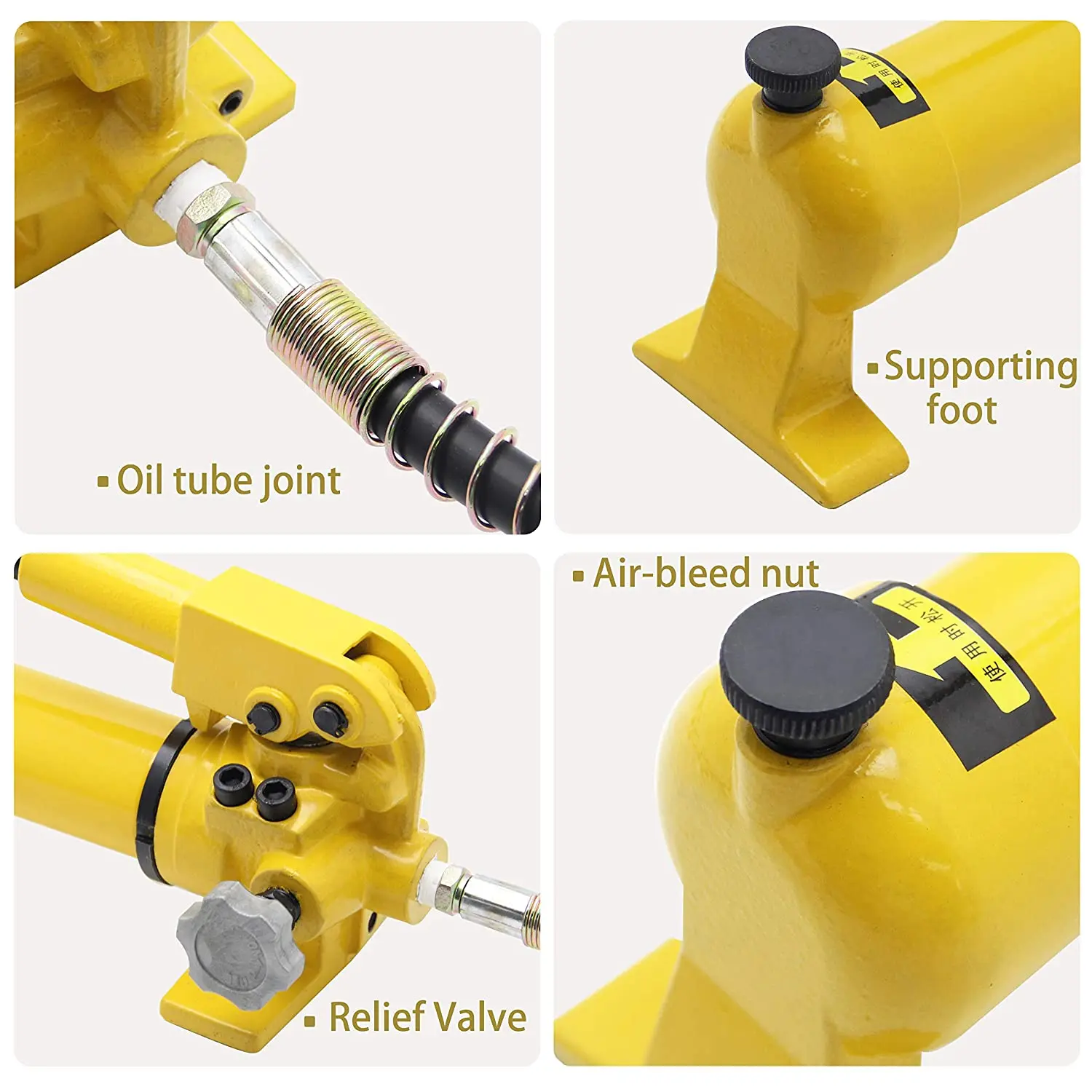

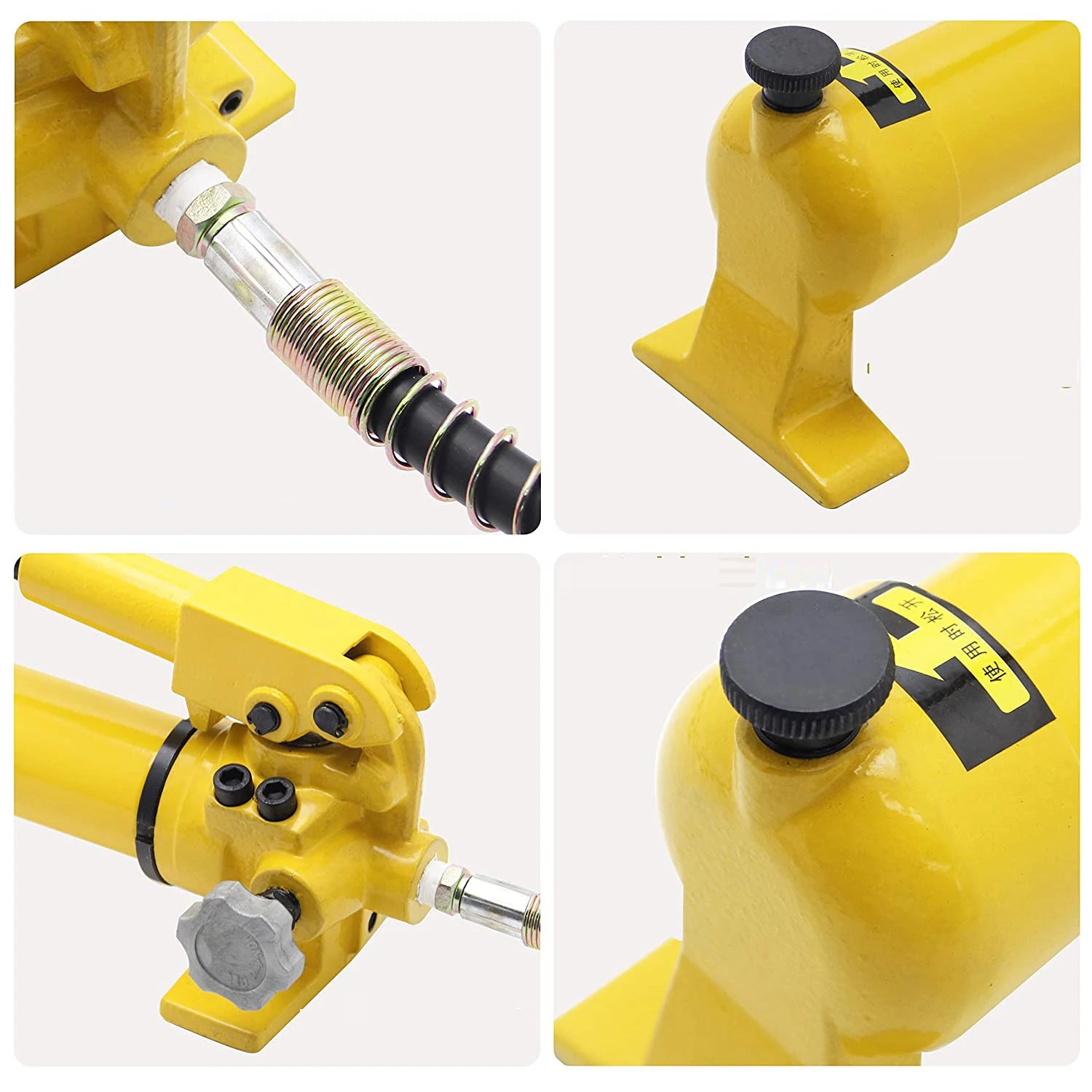

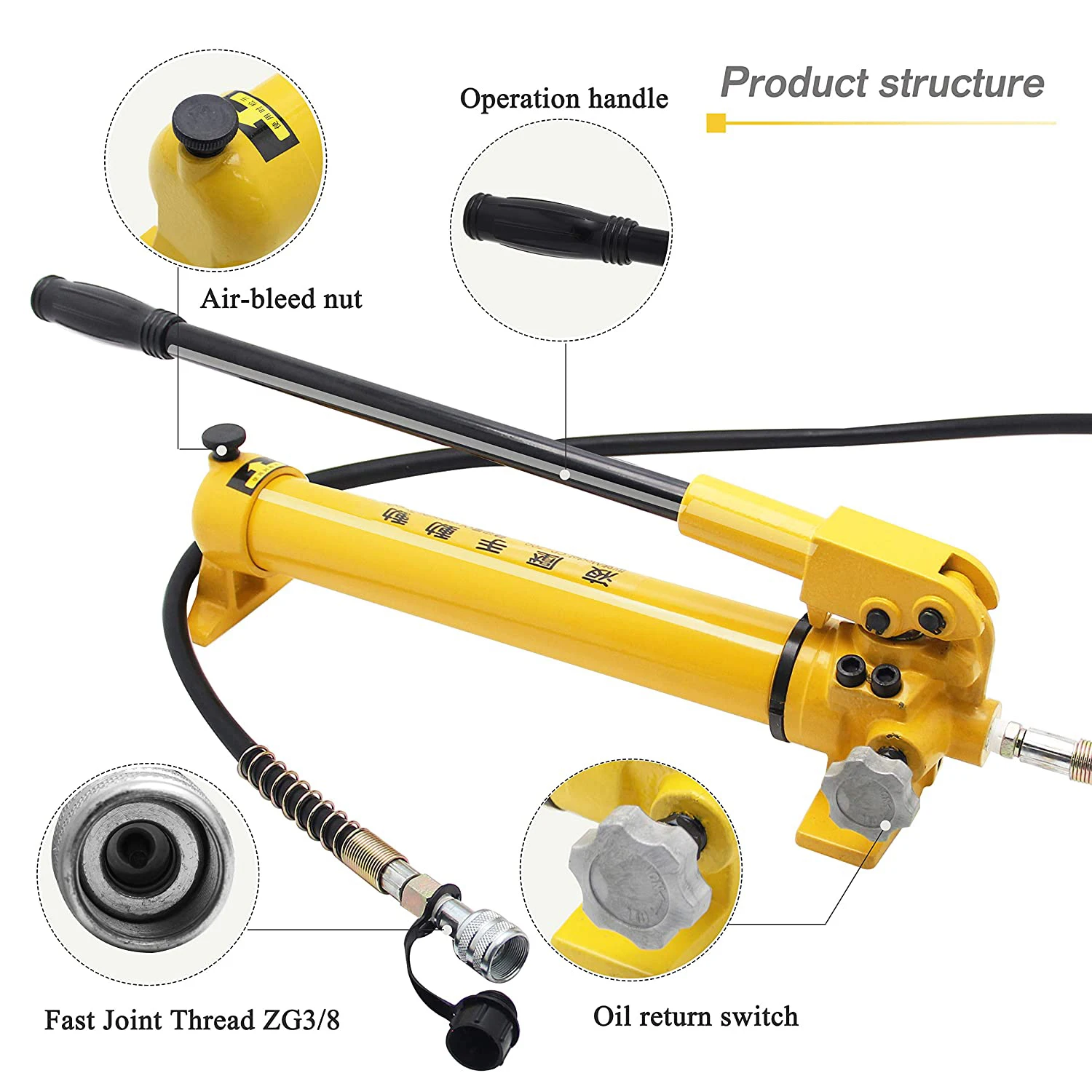

* 2. Pressure Relief Valve: turn clockwise to tight when working, turn anticlockwise when release pressure.
* 3. Oil Pipes and Joints: CP-700 with 1.8 meter tubing and ZG3/8 Thread.
* 4. Ventilation nut: switch on the tail of it, you must unscrew the nut when using, to avoid sealed of oil box.

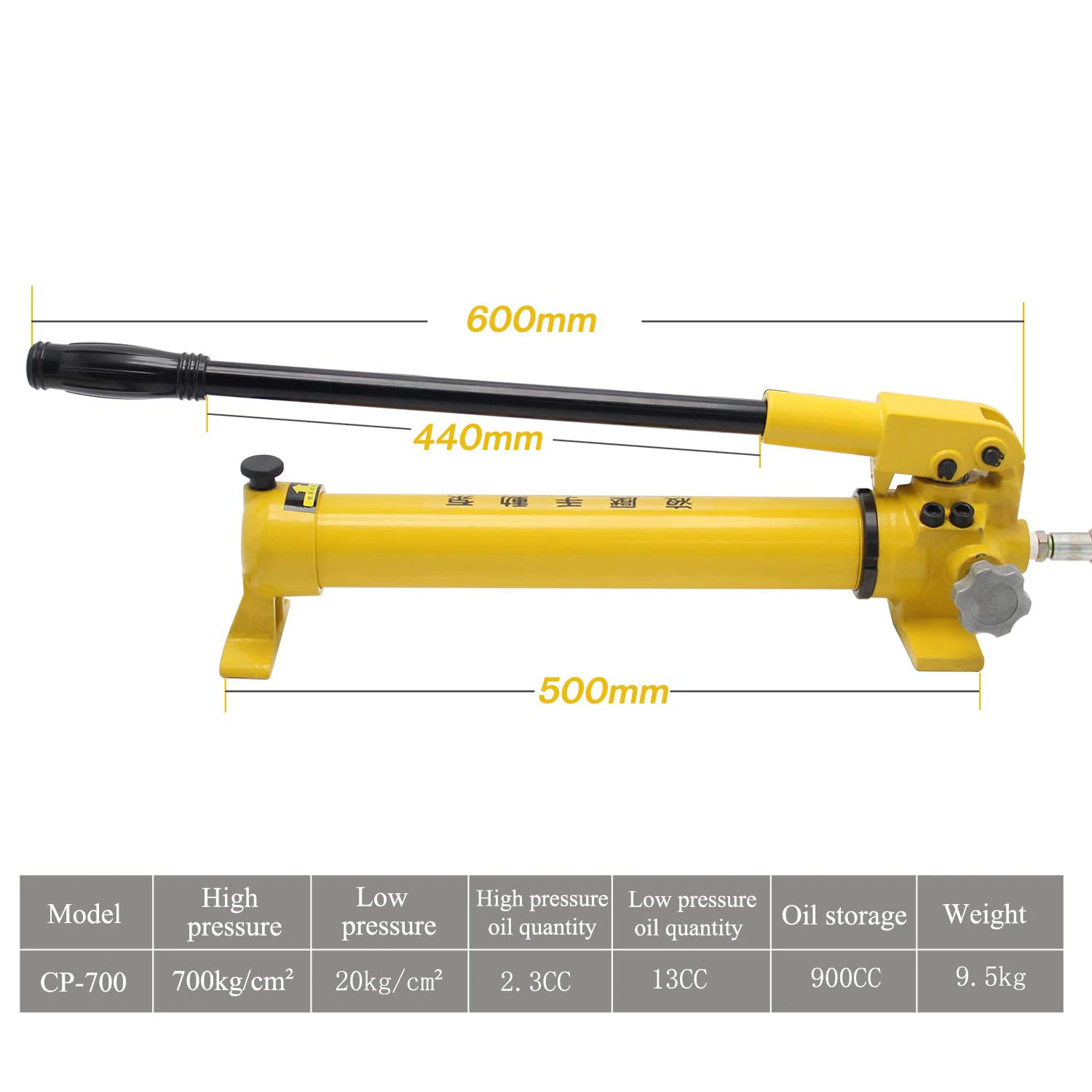

PRODUCT SPECIFICATIONS
Type
hand
Max output pressure
Low pressure
2Mpa
High pressure
70Mpa
output of the oil
Low pressure
4cc
High pressure
11cc
Capacity of oil
940cc
Direction of piston
double
Weight
approx9kg
Measurement(LxWxH)
510x140x150mm
FAQ
Q1: Is the whole working procedure finished by your workshop?
Re: Yes, the whole working procedure finished by our workshop.

Q2:How about your stock?
Re: We always are not in stock, we produce as customers’ requirement.

Q3: What is your delivery time ?
Re:It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.

Q4: How do you guarantee your quality ?
Re: Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting ,forging ,punching ,heat treatment ,finish machining ,painting ,assembling and finally packing ,we will spot check for each steps. Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.

Q5: What's your warranty time?
Re: The warranty time is 2 years.
